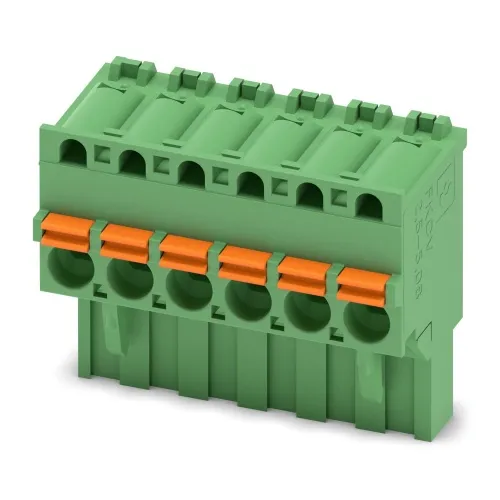

Popular Phoenix Contact 1873993 PCB connector FKCVR 2,5/ 6-ST-5,08

Phoenix Contact 1873993 A PCB connector with a nominal cross-sectional area of 2.5mm² and green color is rated for a maximum current of 12A and a voltage of up to 320V (III/2). The contact surface features tin and uses a socket connection type, allowing for six potential connections along a single row with a pitch of 5.08mm. The connection method employs push-in spring contacts, oriented at a 90° angle, while the locking clip is removable without additional components, utilizing a combicon plug-in system that does not require mounting and is packaged in cardboard.
